Dual Access Flexible Circuits: Bridging Flexibility and Accessibility

Flexible circuits, also known as flexible printed circuits (FPCs), have transformed electronic design with their ability to bend, flex, and fold, enabling innovative applications across various industries. Best FPC, with 18 years of experience, stands at the forefront of designing and producing specialized flexible circuits, demonstrating the evolving sophistication in this field. Dual-access flexible circuits represent a significant leap forward, offering unique access points on both sides of the circuit. This advancement not only enhances the inherent flexibility of these circuits but also improves accessibility for testing and integration, thereby revolutionizing electronics. By bridging flexibility and accessibility, dual-access flexible circuits open new possibilities for complex electronic designs and applications, making them a pivotal technology in the continuous evolution of electronic devices.

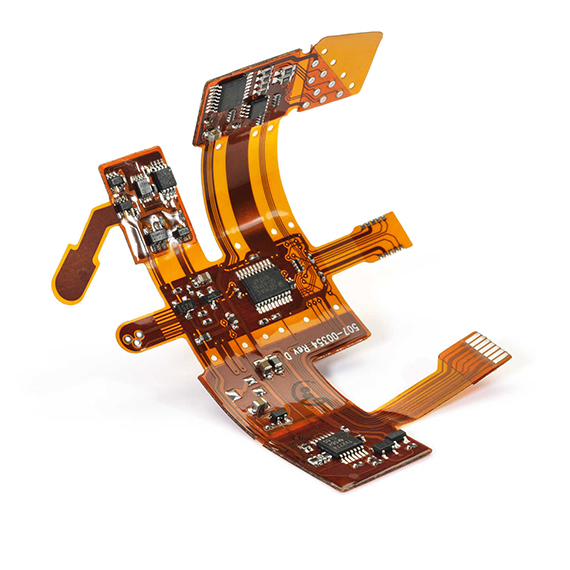

Understanding Dual Access Flexible Circuits

Definition and Explanation

Dual access flexible circuits, a nuanced category within the flexible circuit domain, diverge from conventional designs by offering accessibility from both the top and bottom sides despite featuring a singular layer of conductor trace. This unique architecture eliminates the need for plated through-holes (PTH), simplifying trace layout and manufacturing processes. The innovation lies in the overlay openings on both sides, permitting solderable pads on each, akin to double-sided FPCs but with a simplified stack due to the single copper trace layer.

Comparison with Traditional Flexible Circuits

Unlike traditional flexible circuits that may require complex layering and vias to achieve connectivity across multiple layers, dual-access flexible circuits streamline this with their singular conductive layer. This approach simplifies fabrication and reduces the potential for manufacturing errors, making them a cost-effective solution for specific applications.

Key Components and Materials

The cornerstone of dual access flexible circuits is the copper used as the base material, standardly set at a 1OZ thickness to balance flexibility with the necessary rigidity. The overlay, crucial for protecting the circuit, typically comprises a 25um Polyimide layer coupled with a 25um adhesive layer, culminating in a total thickness of 0.13mm. This configuration mirrors that of Flex Flat Cables (FFC), albeit with the versatility of overlay opening placement that extends beyond the edge constraints seen in FFC designs.

Technological Advancements

Advancements in material science and precision manufacturing techniques underpin the advent of dual-access flexible circuits. These innovations allow for the accurate placement of overlay openings and the maintenance of uniformity in conductor trace thickness, essential for the circuit's functionality and reliability.

Advantages of Dual Access Flexible Circuits

Enhanced Flexibility for Complex Designs

Dual access flexible circuits offer unparalleled flexibility, enabling more intricate designs by allowing components to be mounted on both sides of the circuit without the need for through-holes. This feature particularly benefits space-constrained applications, such as wearable technology and compact electronic devices.

Improved Accessibility for Testing and Integration

The design of dual access circuits facilitates easier testing and integration, as the accessibility of solderable pads on both sides allows for more straightforward connections with other components. This can significantly reduce assembly time and improve the efficiency of the manufacturing process.

Increased Reliability and Durability

The simplified construction of dual access flexible circuits, devoid of through-holes, reduces the potential for mechanical stress points, thereby enhancing the circuit's durability and reliability over its lifespan.

Support for More Complex Circuit Designs

The ability to utilize both sides of a single-layer circuit effectively doubles the available real estate for component placement, without complicating the circuit's layout. This allows for denser, more complex circuit designs without the added complexity and cost of multilayered flexible circuits, opening up new possibilities in electronic design innovation.

Applications of Dual Access Flexible Circuits

Vibration Motor for Mobile Phone

Dual-access flexible circuits have revolutionized the design and functionality of mobile phone vibration motors. Their compact and flexible nature allows for more efficient and reliable connections between the motor and the phone's main circuitry, enhancing the user's tactile feedback experience without increasing the device's size or complexity.

LCD Module for Mobile Phone

In the realm of mobile phone LCD modules, dual-access flexible circuits provide a streamlined approach to connectivity. By facilitating connections on both sides of the circuit, these innovative circuits support the development of thinner, more advanced displays, offering improved visual output and touch response functionalities in compact mobile devices.

Printer

Printers benefit from dual access flexible circuits through their application in connecting print heads to the main control boards. This technology supports the creation of more compact, efficient printers by simplifying the internal wiring, thereby reducing the space required for circuitry and enhancing the printer's overall reliability and print quality.

Challenges and Solutions

Technical Challenges in Manufacturing and Design

One of the main hurdles in the production of dual-access flexible circuits is the precision required in the alignment of overlay openings and ensuring uniformity in the thickness of the copper trace. Additionally, integrating components on both sides of the circuit can introduce complexities in the assembly process.

Solutions for Overcoming Complexity and Cost Issues

Advancements in manufacturing technologies, such as improved precision laser cutting and automated inspection systems, have been crucial in addressing these challenges. Additionally, the development of more robust design software aids in optimizing circuit layouts to minimize errors and reduce production costs.

Future Research Directions

Ongoing research aims to refine the materials and processes used in dual-access flexible circuits. Innovations in conductive inks and flexible substrates promise to enhance these circuits' performance and durability while potentially reducing their environmental impact.

The Future of Dual Access Flexible Circuits

Emerging Trends in Flexible Electronics

The field of flexible electronics is witnessing a surge in innovation, with dual-access flexible circuits at the forefront. Emerging trends include the integration of these circuits with organic and printable electronics, opening up new possibilities for even more flexible and adaptable devices.

Potential for Growth and Innovation

Dual access technology holds substantial potential for growth, especially in areas requiring compact, flexible solutions, such as wearable technology, flexible displays, and smart textiles. The ability to mount components on both sides of a circuit without additional layers could lead to unprecedented compactness and functionality in electronic devices.

Predictions for New Applications and Market Expansion

As the technology matures, new applications are expected to emerge beyond the current domains. Potential future applications include bio-integrated devices, advanced sensors for environmental monitoring, and flexible solar panels. This expansion is anticipated to drive significant market growth, solidifying the role of dual-access flexible circuits in the next generation of electronic devices.

Unlock Efficiency and Innovation Today

Dual-access flexible circuits represent a pivotal innovation in electronics, merging unparalleled flexibility with enhanced accessibility. By enabling connections on both sides of a single-layer circuit, they simplify design complexities, reduce manufacturing costs, and open new avenues for compact and efficient electronic devices. As we witness their application in mobile phones, LCD modules, and printers, it's clear that their potential extends far beyond. Facing and overcoming technical challenges through advanced manufacturing techniques and material science, Best FPC's dual-access flexible circuits are set to revolutionize the electronics landscape. Their evolving role promises to meet current demands for miniaturization and efficiency and unlock future possibilities in wearable technology, smart textiles, and beyond, making them a cornerstone of innovation in flexible electronics.
