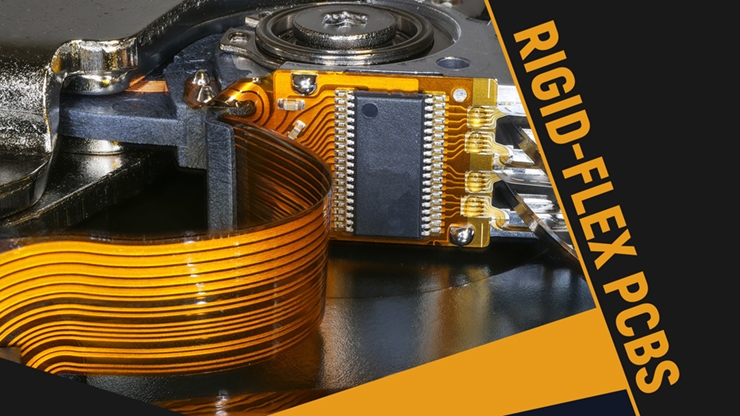

Advanced Rigid-Flex PCB Assembly Solutions

Rigid-Flex PCB technology integrates rigid and flexible circuit boards, offering unparalleled versatility in electronic design. While traditional rigid PCBs lack flexibility and flexible ones may lack structural integrity, Rigid-Flex PCBs overcome these issues by combining both elements in a single board. This allows for intricate three-dimensional layouts and enhanced reliability. Advanced assembly solutions are pivotal in unlocking the full potential of Rigid-Flex PCB technology. They encompass cutting-edge manufacturing techniques, high-performance materials, and meticulous assembly processes tailored to modern electronics' demands. With electronic devices becoming smaller and more complex, advanced assembly solutions are essential for ensuring optimal product performance, reliability, and lifespan. This introduction lays the groundwork for delving into the advantages, components, applications, and future prospects of advanced Rigid-Flex PCB assembly solutions.

Advantages of Advanced Rigid-Flex PCB Assembly

Enhanced Reliability

Rigid-Flex PCB assembly guarantees heightened reliability compared to traditional rigid or flexible PCBs. With fewer solder joints and the elimination of connectors, it reduces potential points of failure, ensuring overall robustness. This is especially vital in critical applications like aerospace, automotive, and medical devices.

Expanded Design Flexibility

Advanced Rigid-Flex PCB assembly offers unparalleled design flexibility, enabling engineers to craft intricate three-dimensional layouts tailored to specific needs. By seamlessly integrating rigid and flexible sections within one board, designers optimize space utilization and accommodate complex designs otherwise unattainable with conventional PCBs.

Space-Efficiency Benefits

Rigid-Flex PCBs deliver substantial space-saving advantages, crucial in compact electronic devices where every millimeter matters. By removing bulky connectors and cables, Rigid-Flex PCB assembly minimizes overall device footprint, empowering manufacturers to create smaller, lighter, and more streamlined products without sacrificing functionality or performance.

Key Components and Technologies

High-Density Interconnects (HDIs)

High-density interconnects (HDIs) are pivotal in advanced Rigid-Flex PCB assembly. These components enable the integration of multiple circuitry layers into confined spaces, facilitating connections between rigid and flexible sections. HDIs enhance signal integrity, diminish signal loss, and elevate overall electrical performance, making them ideal for high-speed and high-frequency applications.

Advanced Substrate Materials

Advanced substrate materials are fundamental in ensuring the reliability and efficacy of Rigid-Flex PCBs. These materials must exhibit superior mechanical properties such as flexibility, bendability, and thermal stability, while maintaining robust electrical characteristics. Common substrate materials like polyimide, FR-4, and liquid crystal polymer (LCP) offer distinct properties tailored to specific application needs.

Precision Manufacturing Techniques

Precision manufacturing techniques are indispensable for achieving the intricate designs and high-quality standards demanded by advanced Rigid-Flex PCB assembly. These techniques encompass various processes, including laser drilling, controlled impedance routing, sequential lamination, and precise soldering methods. Through the implementation of advanced manufacturing technologies and stringent quality control measures, manufacturers uphold the consistency, reliability, and performance of Rigid-Flex PCBs across diverse applications and industries.

Utilization Across Industries

Aerospace and Defense

Rigid-Flex PCBs are essential in aerospace and defense sectors, delivering unparalleled reliability and resilience. Withstanding extreme conditions like vibrations and temperature variations, they are vital components in aircraft, satellites, and military equipment. Rigid-Flex PCBs enable the development of compact designs crucial for space-restricted aerospace platforms and critical defense systems.

Medical Devices

Rigid-Flex PCBs play a pivotal role in diverse medical devices, including pacemakers, medical imaging tools, and wearable health monitors. Their flexibility and reliability suit applications demanding biocompatibility and enduring performance. By enabling downsizing, Rigid-Flex PCBs aid in creating smaller, lighter, and more user-friendly medical devices, ensuring accuracy and functionality remain intact.

Consumer Electronics

Ubiquitous in consumer electronics, Rigid-Flex PCBs power devices like smartphones, tablets, laptops, and wearables. Leveraging their space-saving benefits and adaptability, manufacturers craft sleek, compact devices without compromising functionality. Rigid-Flex PCBs streamline component integration, fostering innovative designs and propelling advancements in consumer electronics technology.

Best Technology's Rigid-Flexible Circuit Board Capabilities

As a leading manufacturer of rigid-flexible circuit boards in China, Best Technology is dedicated to enhancing our production capabilities to meet the diverse needs of our customers. Our state-of-the-art manufacturing processes allow us to offer a wide range of configurations and materials in rigid-flex circuit boards. Below are the key capabilities that set us apart:

Flexible Layer Configuration

1. Flexibility in Design: Offering 1-10 flexible layers with the option for multiple flex layers in either bonded or air gap configurations.
2. Rigid Layer Capacity: We can accommodate 1-40 rigid layers, extending to 2-50 layer rigid-flexible circuits for complex designs.

Material Selection

1. Flex Core Materials: Utilize Polyimide (PI) ranging from 1/2 mil to 4 mils, available in both adhesive and adhesiveless constructions.
2. Copper Thickness: Flexible circuits feature 1/3 OZ-2 OZ RA or ED type copper, while rigid circuits range from 1/2OZ to 10 OZ.
3. Coverlay and Stiffeners: Options include 1/2 mil to 2 mils polyimide coverlays and stiffeners made from polyimide, FR4, stainless steel, or aluminum.

Rigid Materials and Finishing

1. High-Quality Rigid Materials: Choose from 130, 170, 180 TG FR4, and low flow prepreg to ensure durability and performance.
2. Surface Finishing Excellence: We offer ENIG, ENEPIG, gold plating, and immersion silver, along with gold fingers ranging from 3-30u" Au.

Advanced Manufacturing Techniques

1. EMI/RF Shielding: Incorporation of EMI/RF shielding films to protect against electromagnetic interference.
2. Innovative Vias: Blind and buried vias are available for enhanced connectivity and space optimization.
3. Layer Versatility: Any layer configuration is possible, accommodating the most complex designs.

Quality and Reliability

1. Controlled Impedance: Precise impedance control with values like 50 ohm, 90 Ohm, 100 Ohm, and 110 Ohm to suit various applications.
2. Standards Compliance: Our products are available in IPC 6013 - Class II & Class III standards, ensuring high quality and reliability.

Best Technology is committed to pushing the boundaries of rigid-flexible circuit board manufacturing to provide our customers with high-quality, reliable, and innovative solutions.

Future Trends and Innovations

Advancements in Rigid-Flex PCB Assembly Technologies

Continual technological progress in Rigid-Flex PCB assembly is evident through emerging trends like additive manufacturing. Techniques such as 3D printing of flexible substrates and conductive inks offer enhanced design flexibility and customization options, enabling tailored Rigid-Flex PCBs for specific applications. Furthermore, ongoing developments in materials science, including novel flexible substrates and conductive materials, are elevating the performance and reliability of Rigid-Flex PCBs, unlocking new potentials for future applications.

Projections for Advancements and Application Expansions

The trajectory of Rigid-Flex PCB assembly points towards notable advancements and widespread adoption across diverse industries. Forecasts anticipate further miniaturization of electronic devices to meet demands for compactness and portability. Integration of Rigid-Flex PCBs into emerging technologies like Internet of Things (IoT) devices, wearable electronics, and flexible displays is set to broaden their utility and inspire innovation in design and manufacturing processes. Additionally, advancements in automation and robotics are poised to streamline production, reducing costs, lead times, and enhancing quality and reliability. Overall, Rigid-Flex PCB assembly is anticipated to be pivotal in shaping the future of electronics, fostering the development of more sophisticated, efficient, and adaptable electronic systems.

Final Words

The evolving landscape of Rigid-Flex PCB assembly promises significant advancements fueled by emerging technologies. Ongoing progress in materials science, additive manufacturing, and automation is poised to transform electronic design and manufacturing. These innovations are anticipated to propel greater miniaturization, bolster reliability, and broaden applications across diverse industries including aerospace, medical devices, and consumer electronics. Positioned as a critical component in the evolution of electronics, Rigid-Flex PCB assembly will be instrumental in shaping the future of technology, facilitating the creation of more sophisticated, efficient, and adaptable electronic systems.
