Flexibility Meets Durability: The Polyimide Flexible Circuit Advantage

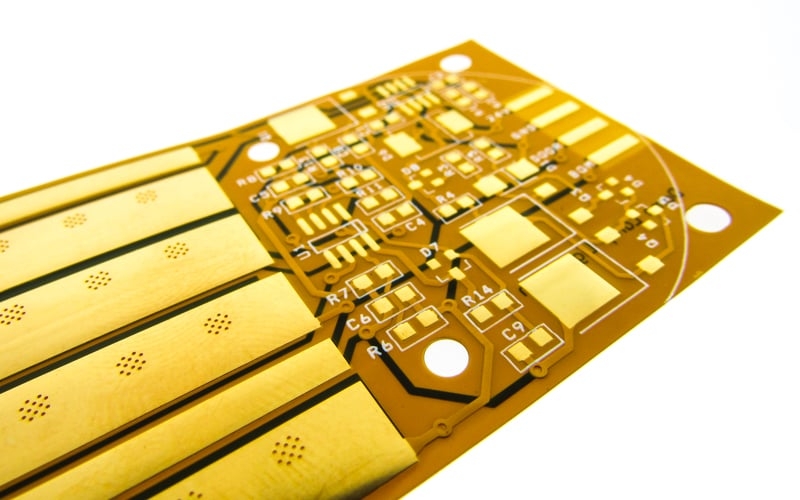

Polyimide flexible circuits are a type of electronic circuit built on a polyimide film, offering exceptional heat resistance and durability. Their adaptability enables enhanced design freedom in electronics, proving crucial for innovative applications requiring compact and resilient components.

Characteristics of Polyimide Flexible Circuits

Exceptional Heat Endurance

Polyimide flexible circuits are distinguished by their outstanding thermal stability. This high-performance polymer can endure significant temperature extremes, making it perfectly suited for use in environments that experience intense thermal cycling. The ability to maintain structural integrity and operational efficiency after being subjected to high temperatures is a hallmark of polyimide circuitry.

Resistance to Chemicals

These circuits are notably impervious to a wide range of chemicals, such as various solvents and oils. Their robustness in aggressive chemical conditions is essential, especially in sectors like medical, automotive, and industrial manufacturing, where lesser materials may succumb to chemical wear.

Mechanical Resilience

Polyimide's natural pliancy is augmented by its substantial mechanical strength. These circuits are capable of withstanding continuous bending and flexing, which is critical for technologies that need to move or fit into unconventional shapes, including wearable devices and custom-shaped electronics.

Dielectric Capability

With a high dielectric strength, Polyimide flexible circuits are capable of resisting considerable electrical force without electrical failure. This characteristic makes them a prudent choice for applications that handle high voltages, offering an added layer of security and dependability in electrical device design.

The Manufacturing Journey of Polyimide Flexible Circuits

Initial Material Treatment

Manufacturing polyimide circuits starts with a meticulous preparation phase of the polyimide film to avoid any impurities or damage that could compromise quality. The film undergoes a thorough cleaning and is then primed for the addition of conductive elements, ensuring a flawless foundation for further processing.

Patterning Methodology

Creating circuit patterns on the polyimide film can be achieved through various approaches, including photolithography, laser ablation, or direct printing. These techniques enable the formation of detailed conductive tracks essential for the circuit's functionality. The selection of the patterning method is informed by the circuit's complexity and the quantity being produced.

Layering and Assembly

Post-patterning, multiple layers of the circuit may be fused through lamination to reach the desired thickness and complexity. This stage is critical for ensuring the cohesive bonding and precise alignment of the layers. Subsequently, electronic components are mounted onto the circuit using a range of methods, including surface-mount or through-hole technologies.

Testing and Quality Assurance

An integral phase in the production process is quality control, which involves rigorous testing of each circuit to confirm its mechanical and electrical performance meets industry standards. This includes visual assessments, electrical continuity and isolation evaluations, along with physical endurance tests, such as flexure trials. This comprehensive quality assurance protocol guarantees that each polyimide flexible circuit delivered meets the stringent criteria for operational excellence and dependability.

Design Advantages

Flexibility for Complex Configurations

Polyimide flexible circuits stand out for their exceptional flexibility, which allows them to fit into tight spaces and conform to shapes that rigid boards cannot. This malleability is crucial for complex electronic assemblies where space is at a premium. Designers can fold and bend these circuits without compromising their functionality, paving the way for innovative product designs.

Lightweight and Thin Profile

The inherent thinness and lightness of polyimide circuits contribute significantly to the miniaturization of electronics. By shedding the bulk and weight associated with traditional circuit boards, polyimide flexible circuits are indispensable for portable and wearable devices where the economy of space and the reduction of weight are vital.

High-Temperature Performance

Polyimide Film exhibits exceptional thermal stability, making it an ideal material for extreme temperature conditions. It can reliably operate over a wide temperature range, sustaining prolonged exposure to temperatures as low as -269 degrees Celsius and as high as 280 degrees Celsius. This makes it an excellent choice for applications requiring consistent performance under varying thermal stresses. Additionally, Polyimide Film demonstrates a remarkable capacity to endure even higher temperatures, up to 400 degrees Celsius, albeit for shorter durations. This high-temperature tolerance, combined with its durability over extended periods, underscores its suitability for challenging environments where thermal resilience is paramount.

Durability in Harsh Environments

Beyond temperature resilience, polyimide is also chemically stable and resistant to many solvents and oils. It possesses excellent mechanical endurance, which helps prevent wear and tear from repeated flexing. Such durability is essential for electronics exposed to harsh environmental conditions.

Applications

Use in Aerospace and Defense

In the aerospace and defense industries, reliability under extreme conditions is non-negotiable. Polyimide flexible circuits are widely used in these sectors for their ability to withstand the rigors of high altitudes, variable pressures, and severe temperature fluctuations, all while maintaining consistent performance.

Medical Devices and Wearable Technology

The medical field benefits from the biocompatibility and resilience of polyimide circuits in critical applications such as implants and monitoring devices. Wearable technology also leverages the lightweight and conformable nature of these circuits to create devices that are comfortable for users to wear over extended periods.

Consumer Electronics

As consumer electronics continue to evolve towards sleeker and more sophisticated designs, polyimide flexible circuits are increasingly favored for their thin profiles and versatility. They are commonly found in smartphones, flexible displays, and other compact devices where space savings is a priority.

Automotive Industry

Modern vehicles, with their advanced electronic systems for navigation, safety, and engine management, rely on the robustness of polyimide circuits. Their ability to endure the automotive environment's heat, vibrations, and chemical exposure makes them an ideal choice for this industry.

CONCLUSION

The polyimide flexible circuit embodies the convergence of flexibility with durability, a union that has revolutionized the design and function of electronic components across industries. With their capability to bend and twist to meet the demands of the most intricate configurations, polyimide circuits have become the cornerstone of modern electronic design, enabling devices to become lighter, more efficient, and more complex without sacrificing performance. The material’s high-temperature resilience and robustness in the face of harsh conditions make it indispensable in sectors where failure is not an option, such as aerospace, defense, medical technology, and automotive.

As the world of electronics continues to advance towards greater miniaturization and sophistication, the role of polyimide flexible circuits is set to grow ever more central, cementing their status as a critical component in the evolution of next-generation electronic devices. The polyimide flexible circuit advantage lies not just in its technical attributes, but in its capacity to unlock new possibilities in electronic design and application, reinforcing its standing as a key enabler of technological progress.
